This article contains a list of possible errors that you may encounter with the Omega I60.
In this article, you will find information about error messages on the BCN3D Omega I60 printer, as well as assistance on how to troubleshoot them.
|
Error-101 Error-102 Error-103 |
Max temperature Triggered |
|
Error-301 Error-302 Error-303 |
Thermal runaway error |
|
Error-401 Error-402 Error-403 |
Heating Failed errors |
|
Error-601 Error-602 Error-603 |
Lost connection with (MOS, Feeder, Peripherals) |
Heating Failed errors
A 'Heating Failed' error screen will appear when the machine is trying to heat a particular heater (in this case, the print heads or the print face) and it is not heating at the optimum speed.
This can happen for a number of reasons. Usually, it is a problem with the connection of the heaters (flat cables of the print heads or cables of the printing surface) or a faulty component.

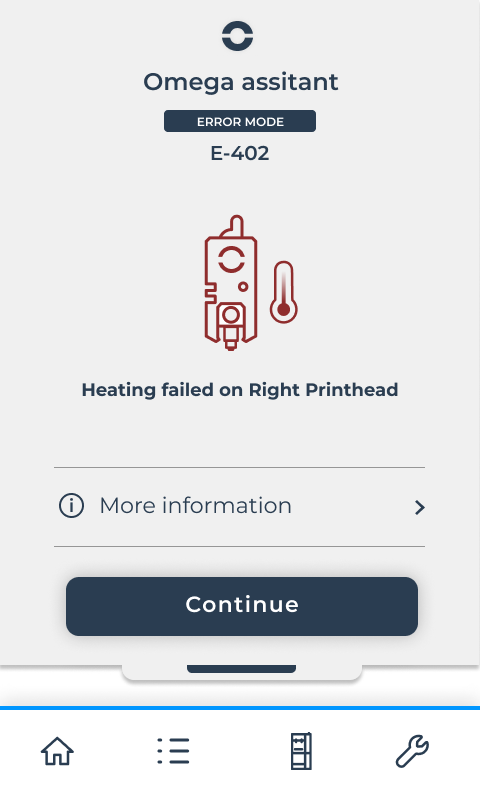

Left or Right Printheads
If the printer displays a temperature error on the Print heads, this may indicate a disconnection or problem with the flat cable that is connected to the Print head or the Print head cable itself.

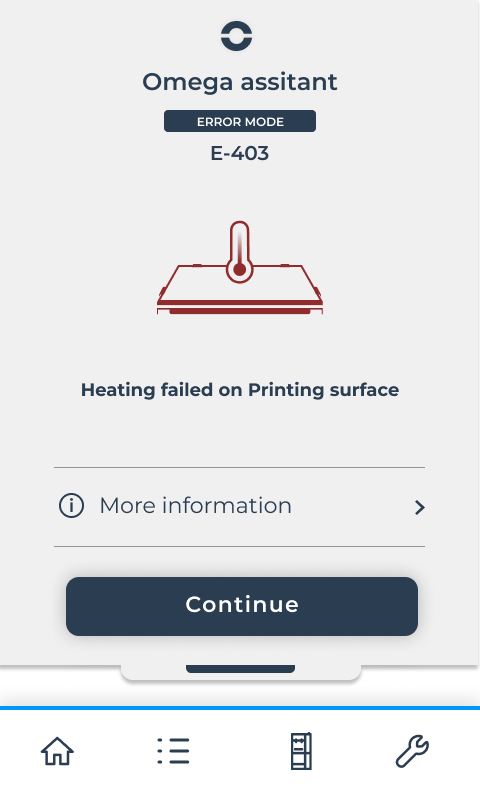

Printing surface
In the event of a Printing surface failure, it is important to contact BCN3D support directly. omega-assistance@bcn3d.com

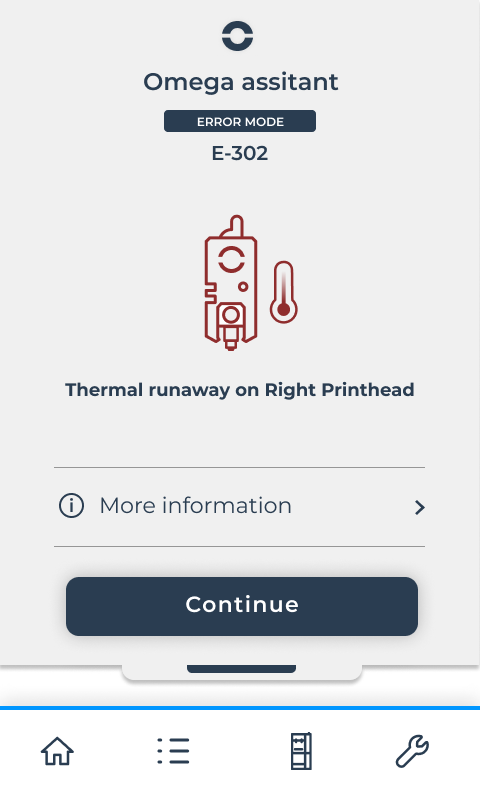

Thermal runaway errors
This type of error is usually caused by a problem with the Print head or Printing surface thermistor. The error occurs when the reading that the printer receives from the component being heated suddenly has a significant fluctuation, both positive or negative. At this point, to protect the component, the pop-up is triggered and the component stops heating.
Further information and troubleshooting steps can be found in the article below.
You can also contact the BCN3D support team:
omega-assistance@bcn3d.com

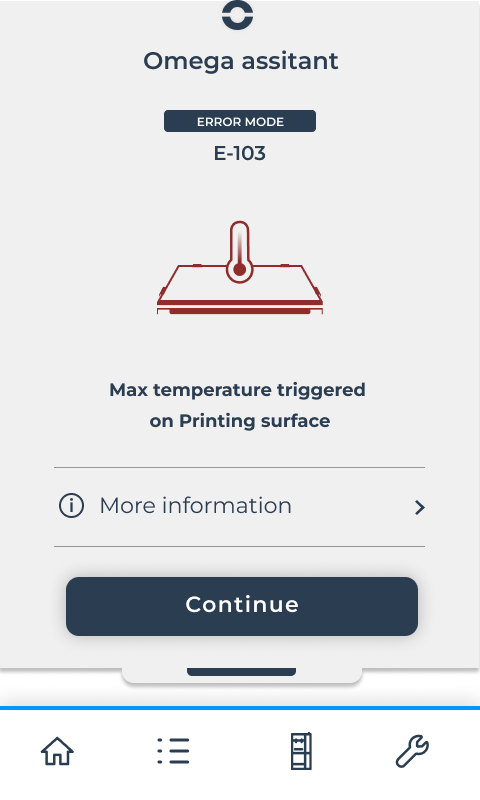

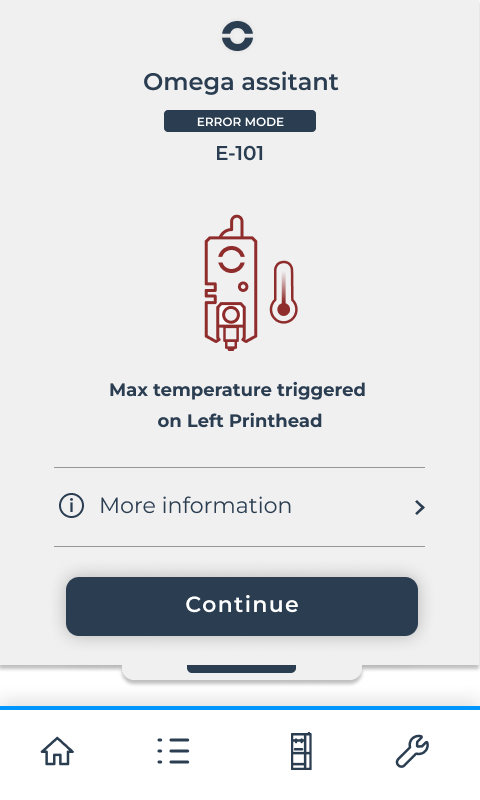

Max Temperature Triggered errors
If the Print heads or Printing surface exceeds the maximum temperature of the printer, this error will be displayed on the screen.
Omega I60 Print head max temperature: 300º.
Omega I60 Printing surface max temperature: 120º.
This error may have occurred accidentally, but if it is recurring, it is important to contact the BCN3D support department. omega-assistance@bcn3d.com
Lost connection errors
If this type of error occurs, it is because the printer has lost communication with the board that is causing the error. You can contact support atomega-assistance@bcn3d.com if the error persists.
Lost connection with MOS.
E-601. Is the error that appears when there is a disconnection with the MOS board.

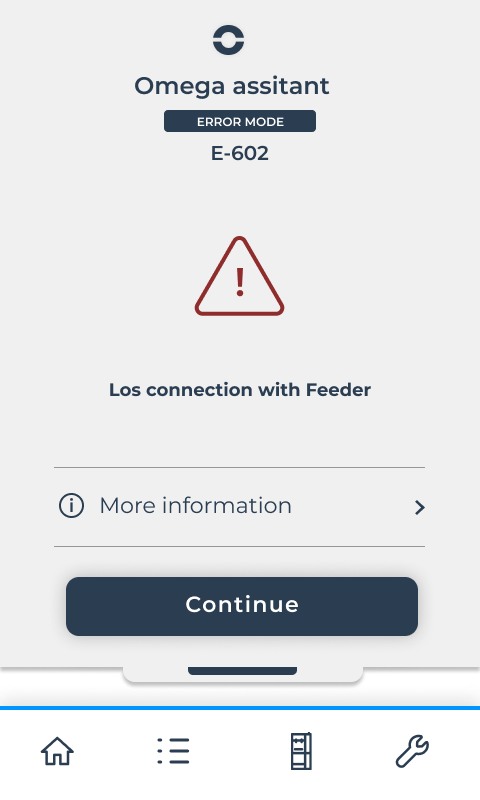

Lost connection with Feeder
E-602. Is the error that appears when there is a disconnection with the feeder board, to solve it you can go to the article below.
How to reset the feeder (Omega I60)
Lost connection with Peripherals
E-603. Is the error that appears when there is a disconnection with the peripheral board.
