How to print with BCN3D PET-G

An easily printable material with good mechanical, chemical and thermal properties. In this article, you will find the basic information to print with BCN3D PET-G






EN

ES




What is PET-G

bcn3d-petg

PET-G (Polyethylene terephthalate glycol-modified) is a polyester thermoplastic characterized by a good balance of tensile strength and elongation at break.

Its high resistance to water and chemicals makes it the material of choice for water-tight containers and protective cases.

PET-G is a versatile technical material, as easy to print as PLA, but with an improved balance of mechanical, chemical, and thermal properties.

You can purchase PET-G from our store: BCN3D PET-G

Properties of BCN3D PET-G

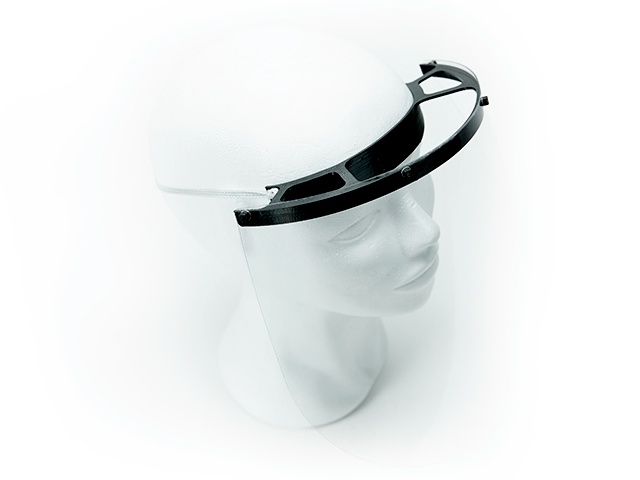

BCN3D_Filaments_PETG_Highly_resistant_to_chemicals_and_humidity

  • Functional prototypes and mechanical parts

  •  Waterproof applications

  • Structural parts subject to mild stress

  • Snap-fit joints

  • Commonly used in beverage bottles

PET-G compatibility with BCN3D printers / hotends

Epsilon-header w27-epsilon-series-bcn3d d25-sigma-series-bcn3d Sigmax-header-3-prints Sigma-header-3prints
0.4 / 0.6 / 0.8 / 1 0.4 / 0.6 / 0.8 / 1 0.4 /0.8 0.4 / 0.6 / 0.8 / 1 0.4 / 0.6 / 0.8 / 1

Supported material combinations

The BCN3D PET-G is compatible with the following BCN3D Filaments.

Standard materials

PLA e-experimental TPU e-experimental PVA e-experimental BVOH e-experimental TPLA e-experimental PET-G ✔
Technical materials

ABS e-experimental PA  PP
Composite materials

PAHT CF15  PP GF30  PET CF15  316L  17-4 PH

PET-G printing settings - 0.4 mm nozzle

Extruder temperature 230ºC-250ºC
Build plate temperature 60ºC Full enclosure models
80ºC Open models
Speed 30 mm/s Full enclosure models
45 mm/s Open models
Retraction speed  40 mm/s Full enclosure models
60 mm/s Open models
Retraction distance  6.5 mm Full enclosure models
5 mm Open models
Cooling fan 90%
Minimum layer height 0.15-0.4 mm



  • Note: BCN3D Lab develops specific configurations for each material and printer. Be sure to use the last BCN3D Stratos version.

Build plate adhesion

Apply a fine and even layer of Magigoo glue to achieve the desired adhesion between the 3D printed part and the printing surface of your 3D printer in order to keep the part fixed.

It is best to apply Magigoo when the printing bed is cool.

BCN3D_Technologies-Magigoo_original-50ml_bottle-0

Recommendations

Plastics absorb moisture from the air. When the material is not in use, it is recommended to keep the PET-G spools in a box or airtight container with desiccant to keep them dry.

PET-G emits low levels of gasses and particles when printed. We recommend printing it in a well-ventilated area to ensure a healthy environment.

Digital documentation of the BCN3D PET-G

Here you can find and download the Technical data and the Safety data sheets of our PET-G:

download-arrow

Technical data sheet

download-arrow

Safety data sheet
